SPECIFICATIONS
| Rim material |
Steel, Al., Alloy |
| Max. wheel diameter |
49" |
| Max. wheel width |
15" |
| Inter clamp |
12"-24" |
| Outer clamp |
14"-26" |
| With optional adapters |
| for Motorcycle |
15"-26" |
| for ATV |
10"-18" |
| Power supply |
110V/220V/380V |
| Motor power |
0.75KW-1.1KW |
| Air supply |
8-10Bar |
| Noise level |
<70dB |
| Package size |
1200*1000*1000MM |
| 1080*1330*300MM |
| Net/Gross weight |
333KG/287KG
103KG/68KG |
OPTIONAL PARTS
Motorcycle adapter;ATV adapter;Plastic mounting/demounting
head;Air tank.

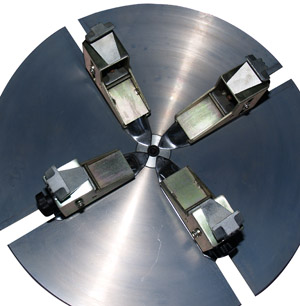

Motorcycle adapter helps to increase
clamping range to accommodate
motorcycle tires up to 23".
 |

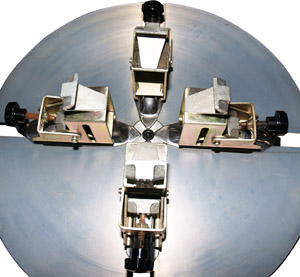

ATV adapter helps to increase
clamping range to accommodate
ATV tires as small as 8".
 |

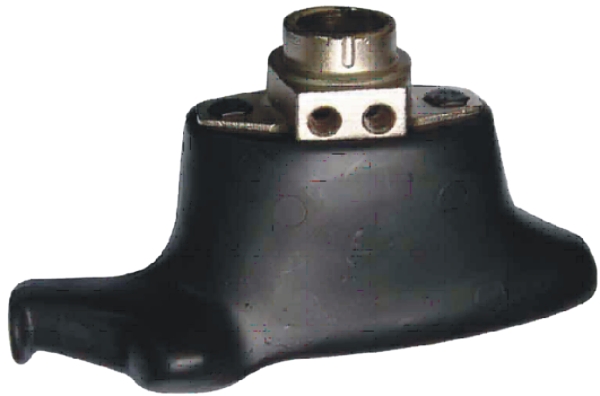

Plastic mounting/demounting
head is very useful to avoid damaging
expensive rims.
 |
|
|
