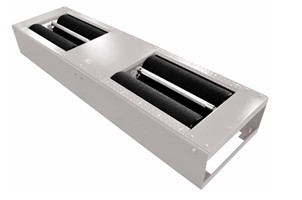

| Brake Tester (please click for more details) |
★Corundum binding roller set for high adhesion in both dry and wet condition
★High precision sensor ensures the exactitude of inspection result
★Using of reinforced steel, strengthen and durable structure body
★High performance motor and gearbox
★Electronic subordinate roller (sensor roller) and speed sensor
★Automatic start and anti-peel tyre program
★Roller driven sort-out program (Air-lifter system available)
★Computer control or LED panel control, or Standard RS-232
|
|
|
|
| |
| EE-RBT03 |
EE-RBT04 |
 |
 |
| EE Model |
EE-RBT03 |
EE-RBT04 |
| Max. Axle Load (kg) |
3000 |
4000 |
| Max. Measure Load (kg) |
3000 |
3000 |
| Measurement Rang (N) |
0-8000x2 |
0-12500x2 |
| Wheel Diameter (mm) |
400-800 |
500-800 |
| Wheel Tread (mm) |
850-2000 |
850-2600 |
| Roller Diameter (mm) |
Φ200 |
Φ245 |
| Roller Length (mm) |
700 |
900 |
| Motor Power (kW) |
2.2 / 4.0 |
4x2 |
| Power Supply |
AC 380V, 50HZ, ground
380-420V 50Hz |
AC 380V, 50Hz, ground
380-420V 50Hz |
| Packing size |
2520X840X480 900x350x1200 |
3200X920X500 900x350x1200 |
|
|
| |
|
