522-C
Home > Tire Changer >

522-C

522-C

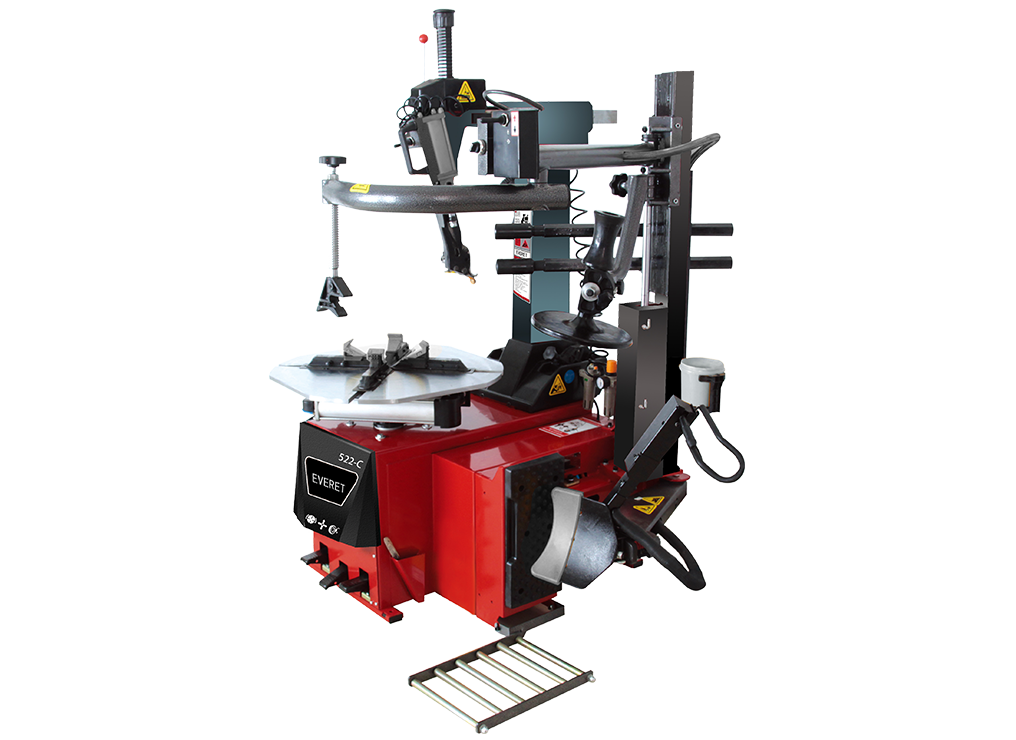

TIRE CHANGER


  • Technical Data

  • Description

  • Brochure

Model
522-C
Rim material
5teel, Al., Alloy
Max.wheel diameter
41“
Max.wheel width
4-13”
Inter clamp
12”-26”
Outer clamp
13“-26"
Power supply
220V/380V
Motor power
0.7-0.9KW/1.1KW
Air supply
8-10Bar
Noise level
<70dB


- Reversible tool head demount tire lever less.

- Automatic tilt back tire changer.
- Double-deck cabinet to reduce space for duck head.
- Movable foot pedal assembly is more convenient for head.
- Turntable switch with 32A and enhanced switch contacts to longer using life.
- Reversible tool head demount tire without lever.
- Pneumatic locking roller powerful when assist arm press the bead and help to demount the tire. .
- Pull-out foot pedal assembly convenient for service.
- PCL inflator with high quality, accurate and fast.
- CE certificated.
