EE-AC568

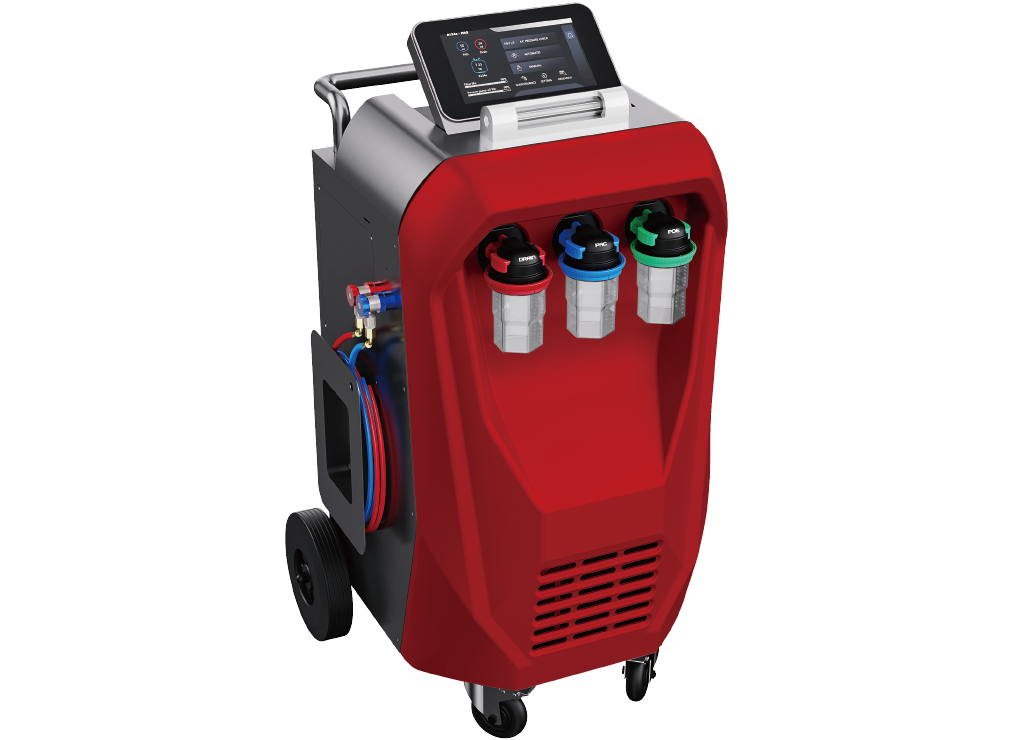

AC REFRIGERANT RECOVER MACHINE

  • Technical Data

  • Description

  • Features

  • Brochure

Model
EE-AC545
EE-AC550
EE-AC568
Display
7"touch screen
5"LCD
10“touch screen
Power Supply
220V/50HZ
220V/50HZ
220V/50HZ
Compressor
3/8LP
3/8LP
2/3HP
Vacuum pump
120L/min
180L/min
120L/min
Recovery efficiency
>95%
>80%
>95%
Charging accuracy
±10g
±10g
±10g
Dry filter ability
100kg
80kg
100kg
lifetime of pump oil
600min
600min
600min
Service hose
2.5m
2m
2.5m
Cylinder Capacity
18kg
42kg
12kg (two tank)
Oil Bottle Capacity
350ml
300ml
350ml
Machine Dimensions in mm LxWxH)
730*590*1020
600*810*1360
719*699*1112
Packing Dimensions in mm LxWxH)
740*660*1200
680*840*1490
755*735*1260
Net weight
85
115
130
Gross weight
95
130
160
*20'container capacity
24
20
20
*40'container capacity
102
45
45

- Professional A/C Station with flushing function.
- Exchange over 80% compressor oil.
- Recovery, vacuum, recharge, and leak detection are completely automatic and require no manual valve control.
- With a 10-inch' swiveling touch screen, the EE-AC568 presents the system pressure, temperature, recovery, and charge amount on a digital display.
- Two new oil injection bottles with scales for PAG and POE make the unit compatible for service on hybrid and electric vehicles.
- Equipped with the sight glass, which makes the flushing operation process visible, the flow of the refrigerant can be seen, as can the cleaning effect before and after.

Model
EE-AC545 EE-AC568
EE-AC550
Refrigerant
R134a
R134a
R134a
Hybrid and electric vehicle compatible
*
*

Buses & trucks compatible


*
Recovery+ Vacuum+ Recharge
*
*
*
Automatic leak detection
*
*

Flushing function

*

Sight glass

*

Mini refrigerant changing

Optional

Fully-automatic operating mode
*
*
*
Deep recovery
*
*

HP/LP/HP+LP charging optional
*
*

Vehicle database
*
*

Refrigerant recycle in system
*

*
Automatic oil drain
*
*
*
Charging new oil
Automatic
Automatic
Button
PAG/POEW Scaled oil bottles
Y/Y/N
Y/Y/N
Y/Y/N
Automatic UV dye injection



Printer
*
*

AVC pressure check
*


Operation service report
*
*

Automatic maintenance alarm
*
*
*
Automatic monitoring of tank pressure and temperature

*

Tank heating tape
Optional
Optional

Easy calibration of electronic scale
*
*

Easy replacement of pump oil
*
*

Easy replacement of filter
*
*

System status indicator

*

Electronic scale for cylinder and Mini Can
Y/N
Y/N
Y/N
Electronic scale for Used o/PAG/POE
Y/Y/Y
Y/Y/Y
N/N/N
