EE-290DMC

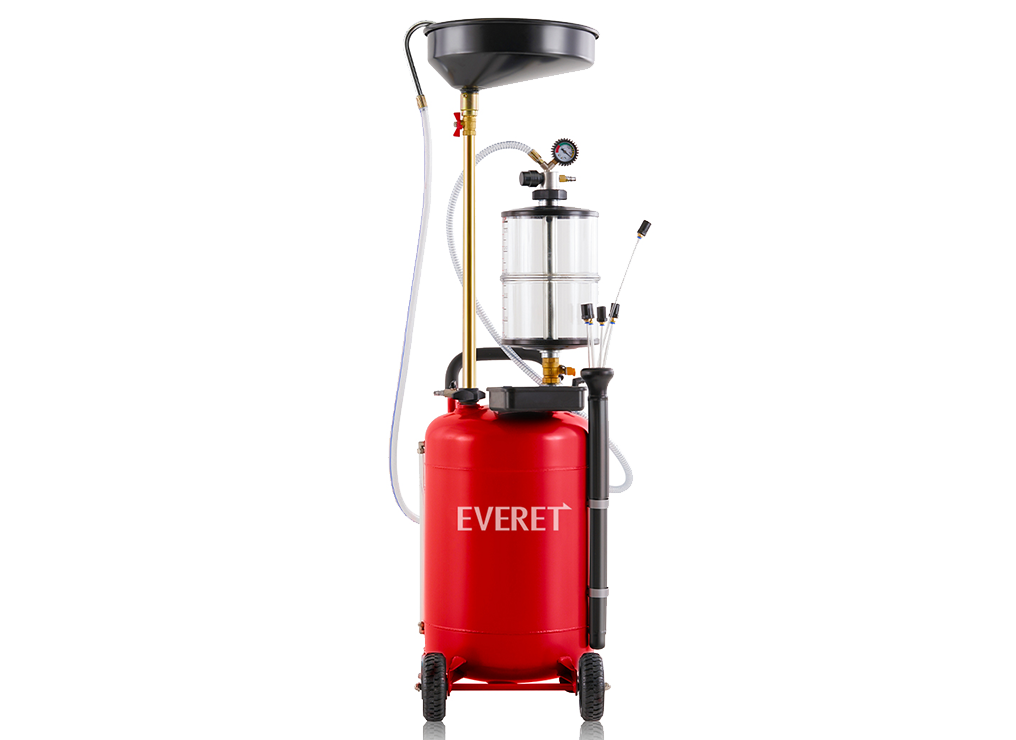

EE-290DMC
AIR-OPERATED OIL COLLECTING SUCTION-DRAINER

  • Technical Data

  • Description

  • Brochure

Model
EE-290DMC
Suction rate
1.8-3.0L/min
MAX lifting height
1.35-1.75m
Tank capacity
70L
Prechamber capacity
10L
Scope of oil collecting
580mm
Max pressure for draining
0.5bar
Air working pressure
6-8bar
Average air consumption
200L/min
Length of suction hose
1.6m
Length of discharging hose
1.6m
MAX temperature of sucking oil
<80℃

- The oil extractor generates a negative pressure directly through the measuring cup and the tank body, allowing manual balancing of the airspace in the measuring cup.
- This results in a larger vacuum capacity, enabling faster and longer oil extraction. It can fill an 80L vacuum in just 3 minutes, allowing it to operate independently of the air source. Additionally, it can continuously extract up to 60L of oil
