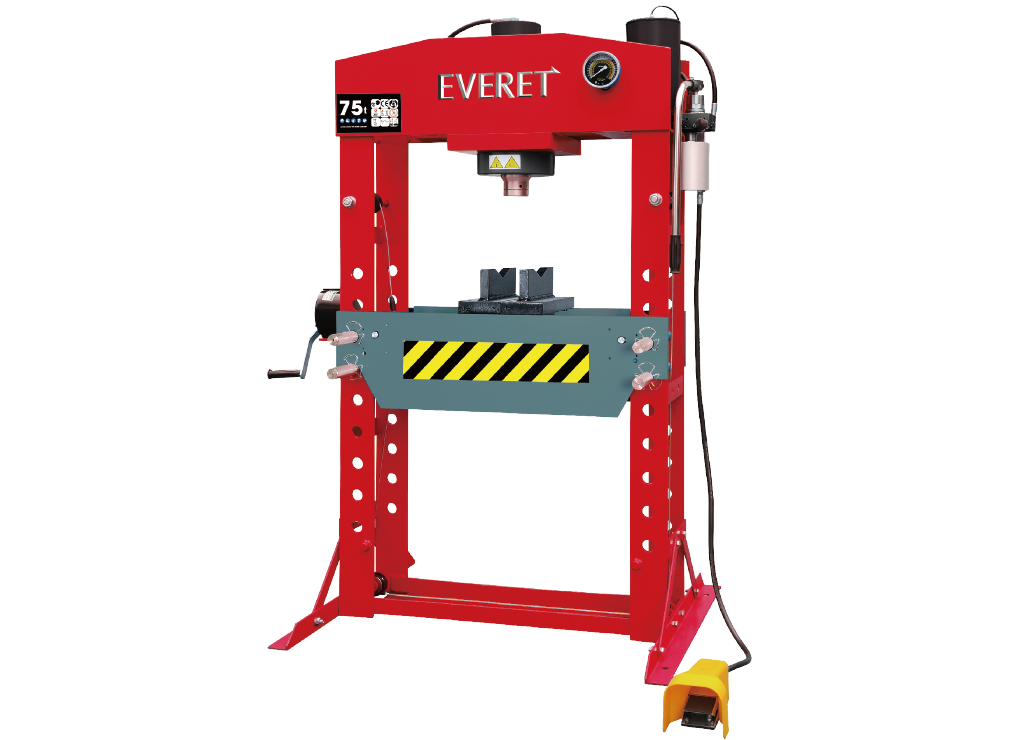

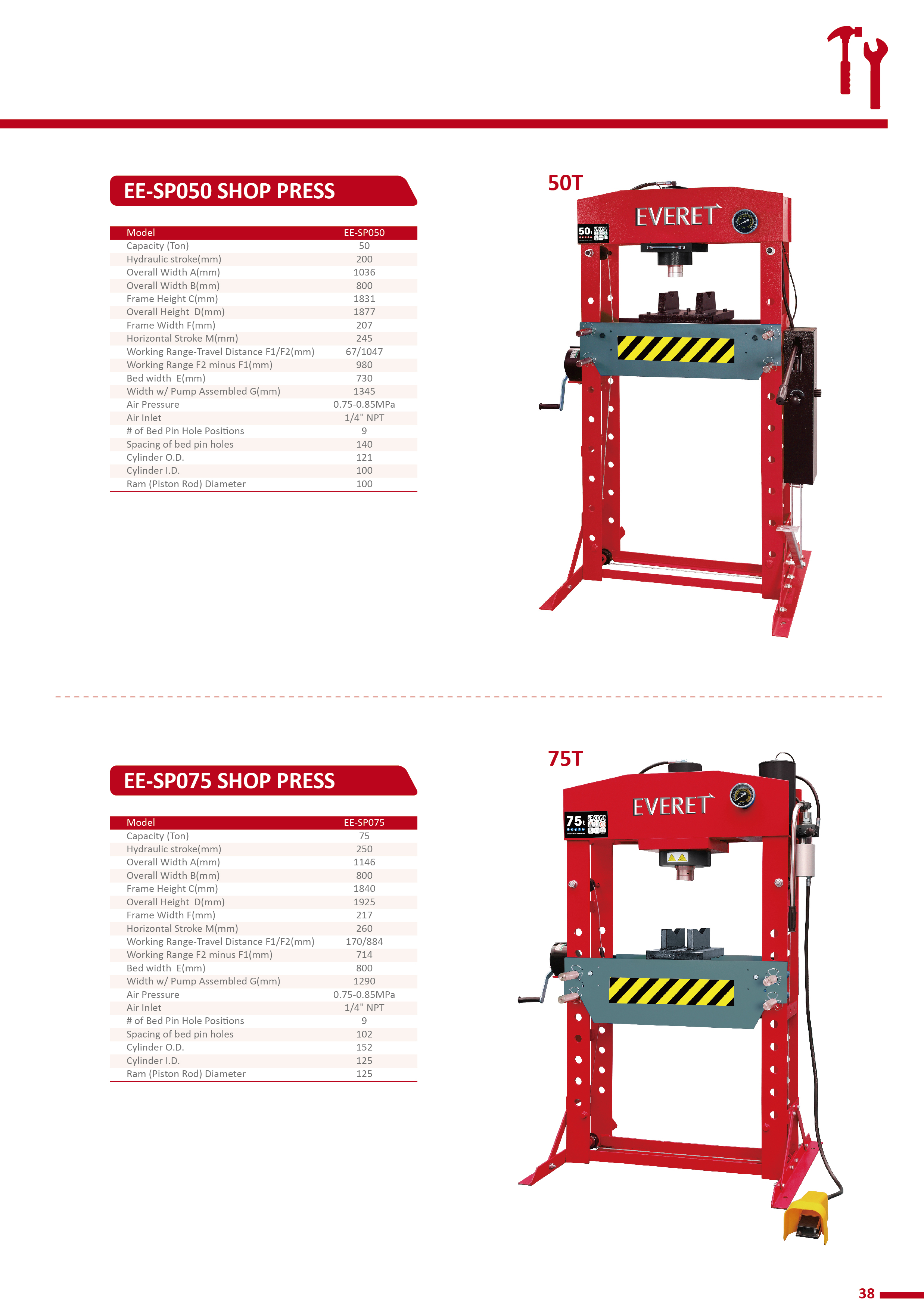

Model	EE-SP075
Capacity (Ton)	75
Hydraulic stroke (mm)	250
Overall Width A (mm)	1146
Overall Width B (mm)	800
Frame Height C (mm)	1840
Overall Height D (mm)	1925
Frame Width F (mm)	217
Horizontal Stroke M (mm)	260
Working Range-Travel Distance F1/F2 (mm)	170/384
Working Range F2 minus F1 (mm)	714
Bed width E (mm)	800
Width w/Pump Assembled G (mm)	1290
Air Pressure	0.75-0.85 MPa
Air Inlet	1/4" NPT
# of Bed Pin Hole Positions	9
Spacing of bed pin holes	102
Cylinder O.D.	152
Cylinder I.D.	125
Ram (Piston Rod) Diameter	125
