EE-7202

EE-7202

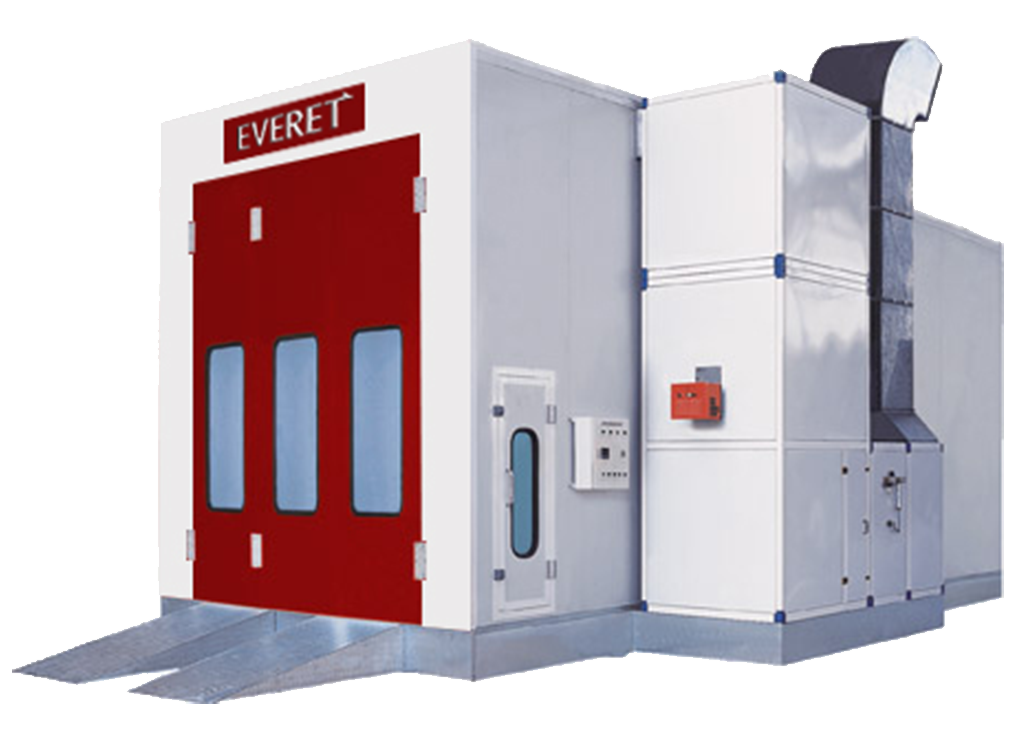

SPRAY BOOTH

  • Technical Data

  • Description

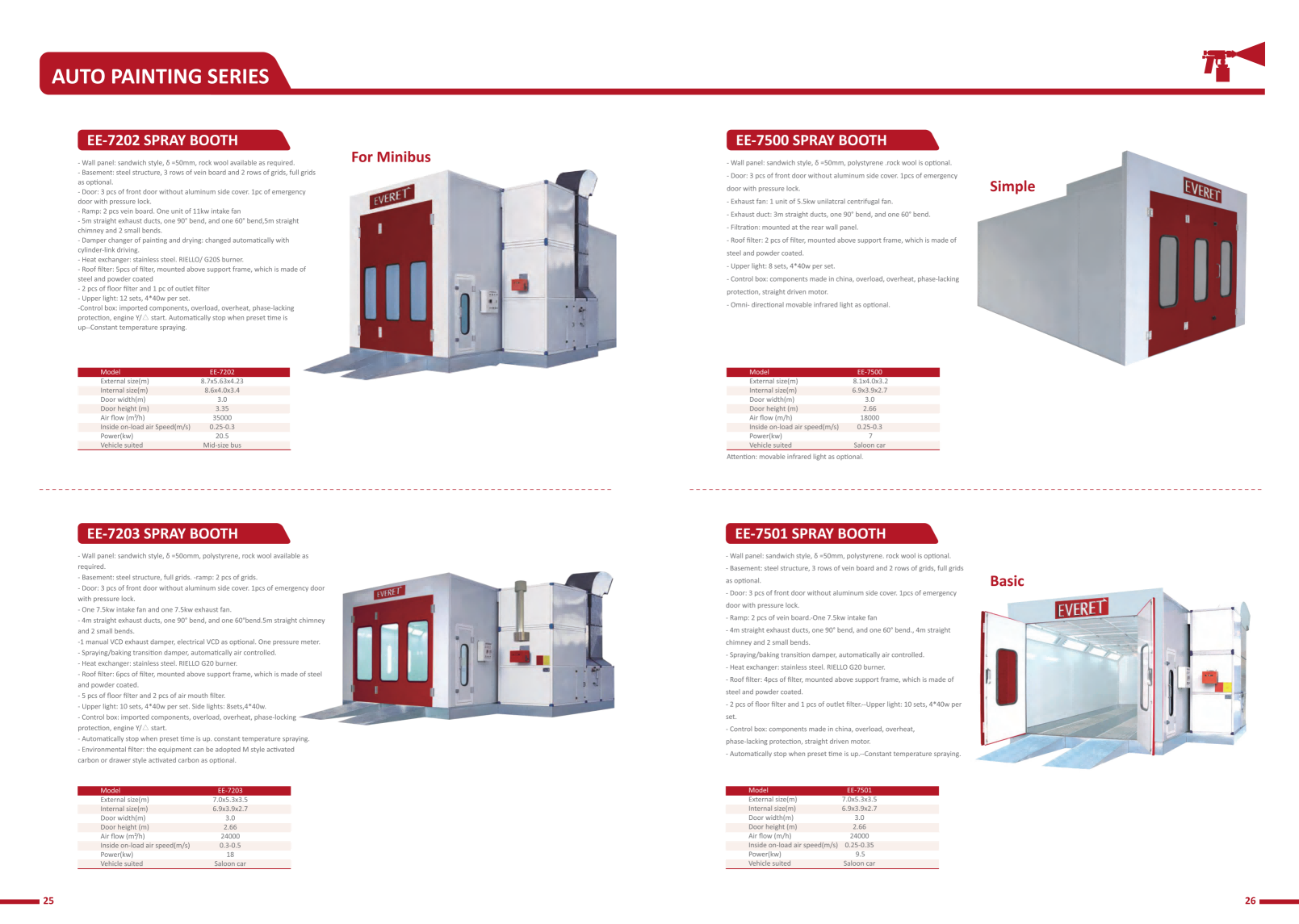

  • Brochure

Model
EE-7202
External size(m)
8.7x5.63x4.23
Internal size(m)
8.6x4.0x3.4
Door width(m)
3.0
Door height(m)
3.35
Air  flow(m2/h)
35000
Inside on-load air Speed(m/s)
0.25-0.3
Power(kw)
20.5
Vehicle suited
Mid-size bus

- Wall panel: sandwich style, δ =50mm, rock wool available as required.
- Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
- Door: 3 pcs of front door without aluminum side cover. 1pc of emergency door with pressure lock.
- Ramp: 2 pcs vein board. One unit of 11kw intake fan
- 5m straight exhaust ducts, one 90° bend, and one 60° bend, 5m straight chimney and 2 small bends.
- Damper changer of painting and drying: changed automatically with cylinder-link driving.
- Heat exchanger: stainless steel. RIELLO/ G20S burner.
- Roof filter: 5pcs of filter, mounted above support frame, which is made of steel and powder coated
- 2 pcs of floor filter and 1 pc of outlet filter
- Upper light: 12 sets, 4*40w per set.
-Control box: imported components, overload, overheat, phase-lacking protection, engine Y/△ start. Automatically stop when preset time is up--Constant temperature spraying.
