EE-4404

EE-4404

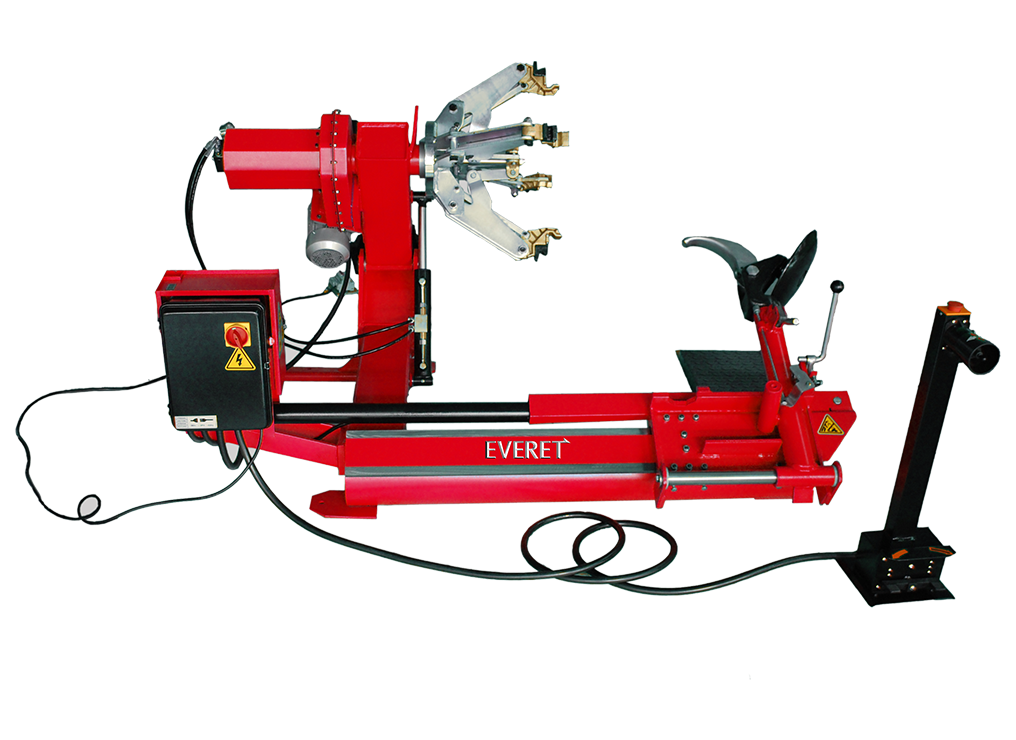

TRUCK TIRE CHANGER




  • Technical Data

  • Description

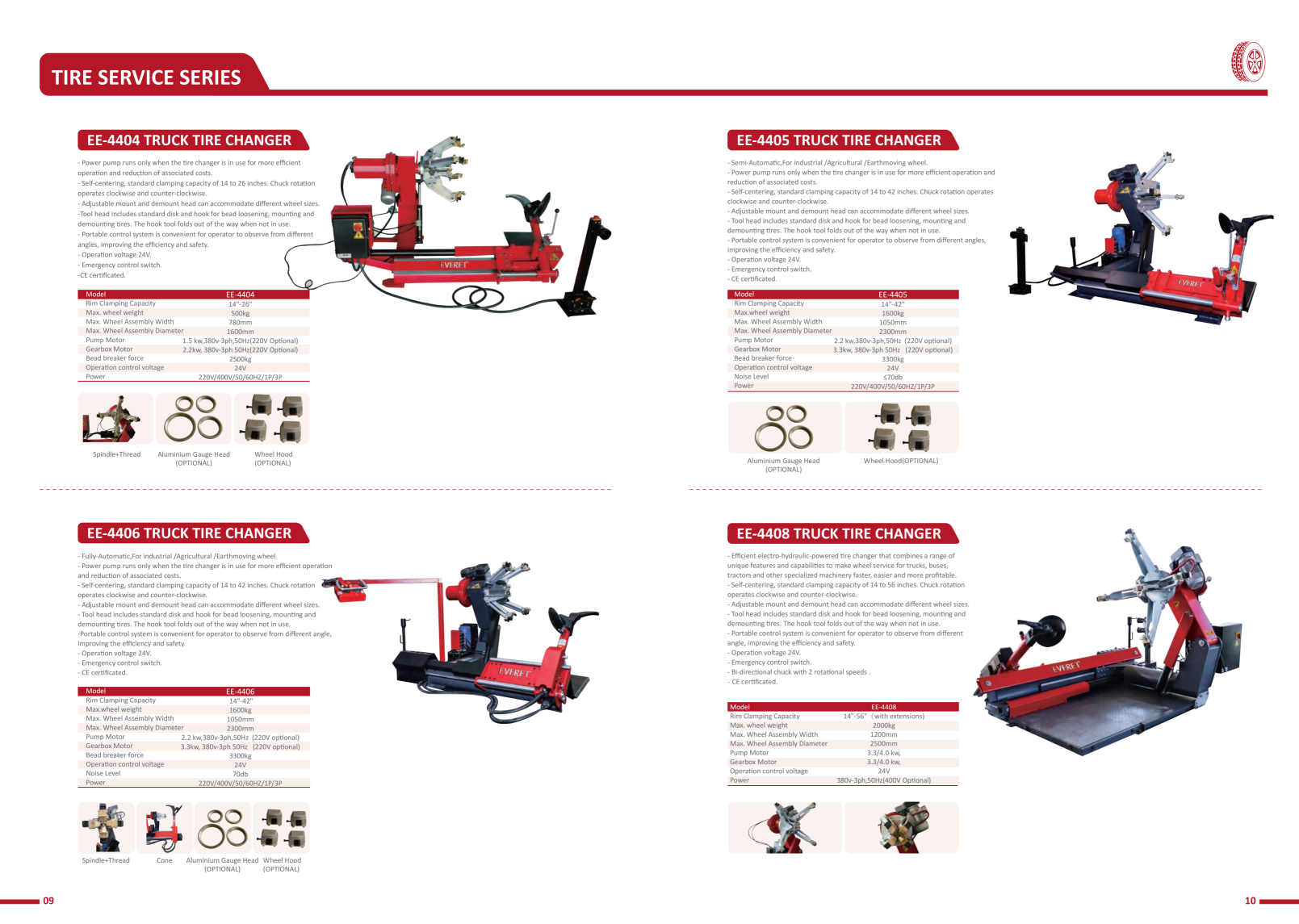

  • Brochure

Model
EE-4404
Rim Clamping Capacity
14"-26"
Max.wheel weight
500kg
Max.Wheel Assembly Width
780mm
Max.Wheel Assembly Diameter
1600mm
Pump Motor
1.5 kw,380v-3ph,50Hz(220V Optional)
Gearbox Motor
2.2kw,380v-3ph 50Hz(220V Optional)
Bead breaker force
2500kg
Operation control voltage
24V
Power
220V/400V/50/60HZ/1P/3P

- Power pump runs only when the tire changer is in use for more efficient operation and reduction of associated costs.
- Self-centering, standard clamping capacity of 14 to 26 inches. Chuck rotation operates clockwise and counter-clockwise.
- Adjustable mount and demount head can accommodate different wheel sizes.
-Tool head includes standard disk and hook for bead loosening, mounting and demounting tires. The hook tool folds out of the way when not in use.
- Portable control system is convenient for operator to observe from different angles, improving the efficiency and safety.
- Operation voltage 24V.
- Emergency control switch.
-CE certificated.
