EE-4406

EE-4406

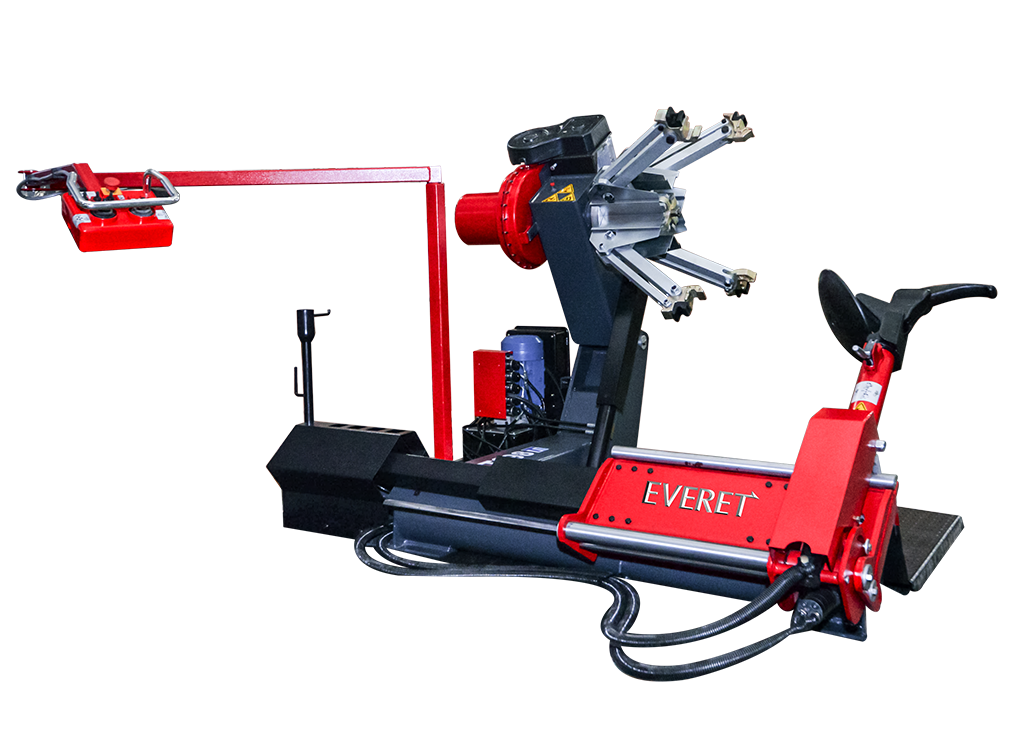

TRUCK TIRE CHANGER

  • Technical Data

  • Description

  • Brochure

Model
EE-4406
Rim Clamping Capacity
14"-42"
Max.wheel weight
1600kg
Max.Wheel Assembly Width
1050mm
Max.Wheel Assembly Diameter
2300mm
Pump Motor
2.2 kw,380v-3ph,50Hz(220V optional)
Gearbox Motor
3.3kw,380v-3ph 50Hz(220V optional)
Bead breaker force
3300kg
Operation control voltage
24V
Noise Level
70db
Power
220V/400V/50/60HZ/1P/3P

- Fully-Automatic, For industrial /Agricultural /Earthmoving wheel.
- Power pump runs only when the tire changer is in use for more efficient operation and reduction of associated costs.
- Self-centering, standard clamping capacity of 14 to 42 inches. Chuck rotation operates clockwise and counter-clockwise.
- Adjustable mount and demount head can accommodate different wheel sizes.
- Tool head includes standard disk and hook for bead loosening, mounting and demounting tires. The hook tool folds out of the way when not in use.
-Portable control system is convenient for operator to observe from different angle, improving the efficiency and safety.
- Operation voltage 24V.
- Emergency control switch.
- CE certificated.
