EE-OK675
Home > Oil Items >

EE-OK675

EE-OK675

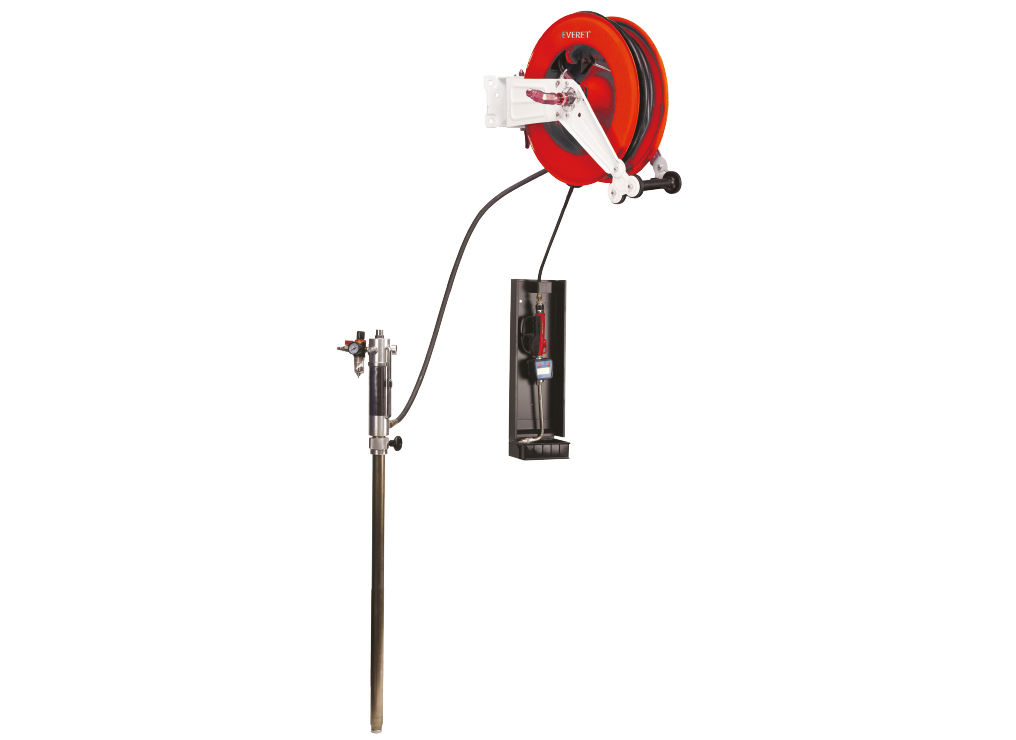

WALL-MOUNTED OIL TRANSFER KIT

  • Technical Data

  • Description

  • Brochure

Model
EE-OK675
Pneumatic pump ratio
5:1
Air inlet connection
1/4"
Fluid outlet connection
1/2"
Air working pressure
5-8bar
Average air consumption
320L/min
Flow rate
18L/min
Fluid temperature
-10-60°
Max deliverable oil viscosity
240SAE
Length of pumping tube
940mm
Diameter of pumping tube
42mm
Oil gun series
Digital oil gur
Measuring precision
5%
Length of outlet reelpipe
10m
Length ofinlet reelpipe
1.5
Diameter of reelpipe
3/8

- Equipped with digital oil gun, hose reel and trolley.
- The oil dispensing kit is applied to a drum or tank.  The oil barrel is fixed in a position, and the oil is filled through the pipe coiler, thus saving space and making the oil filling more convenient.
