EE-7505CE
Home > Spray Booth >

EE-7505CE

EE-7505CE

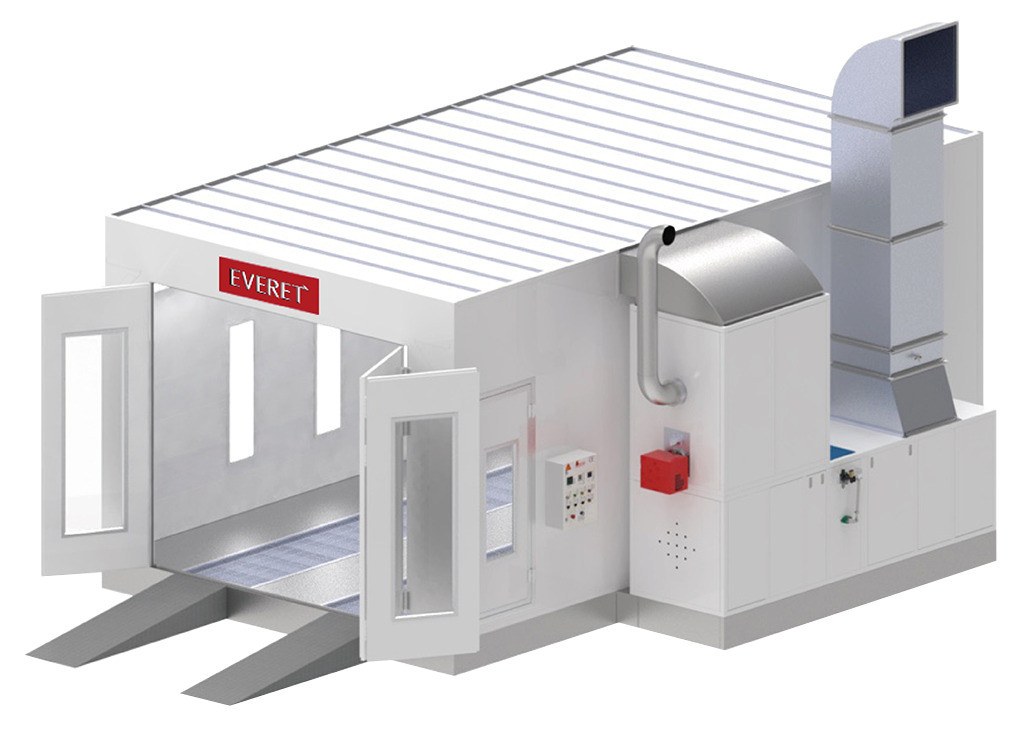

SPRAY BOOTH

  • Technical Data

  • Description

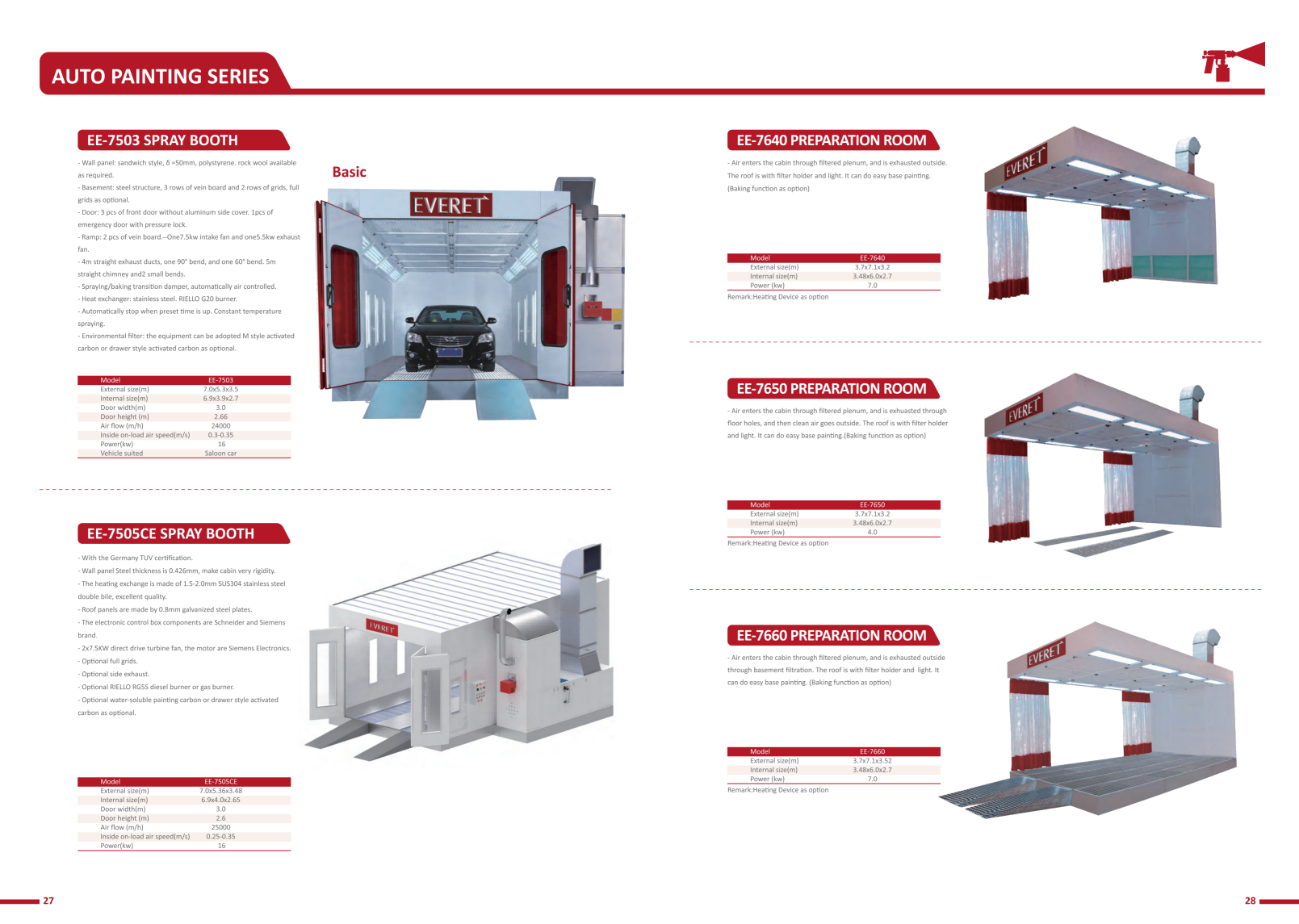

  • Brochure

Model
EE-7505CE
External size(m)
7.0x5.36x3.48
Internal size(m)
6.9x4.0x2.65
Door width(m)
3.0
Door height(m)
2.6
Air flow(m/h)
25000
Inside on-load air speed(m/s)
0.25-0.35
Power(kw)
16

- With the Germany TUV certification.
- Wall panel Steel thickness is 0.426mm, make cabin very rigidity.
- The heating exchange is made of 1.5-2.0mm SUS304 stainless steel double bile, excellent quality.
- Roof panels are made by 0.8mm galvanized steel plates.
- The electronic control box components are Schneider and Siemens brand.
- 2x7.5KW direct drive turbine fan, the motor are Siemens Electronics.
- Optional full grids.
- Optional side exhaust.
- Optional RIELLO RG5S diesel burner or gas burner.
- Optional water-soluble painting carbon or drawer style activated carbon as optional.
