EE-4408
Home > Tire Changer >

EE-4408

EE-4408

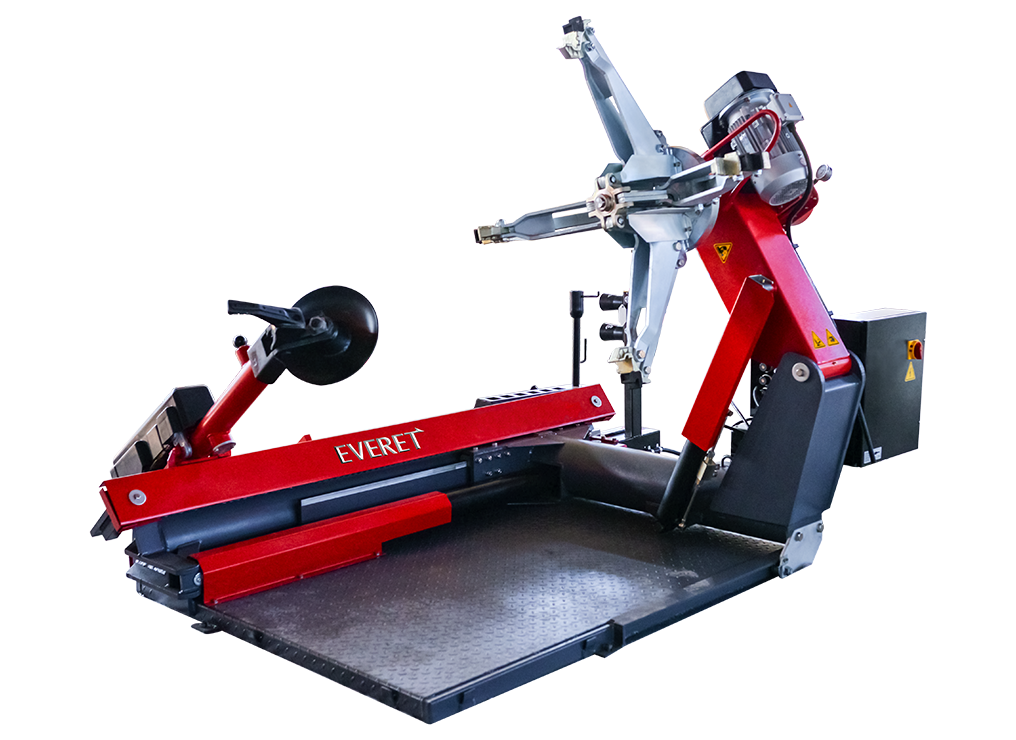

TRUCK TIRE CHANGER

  • Technical Data

  • Description

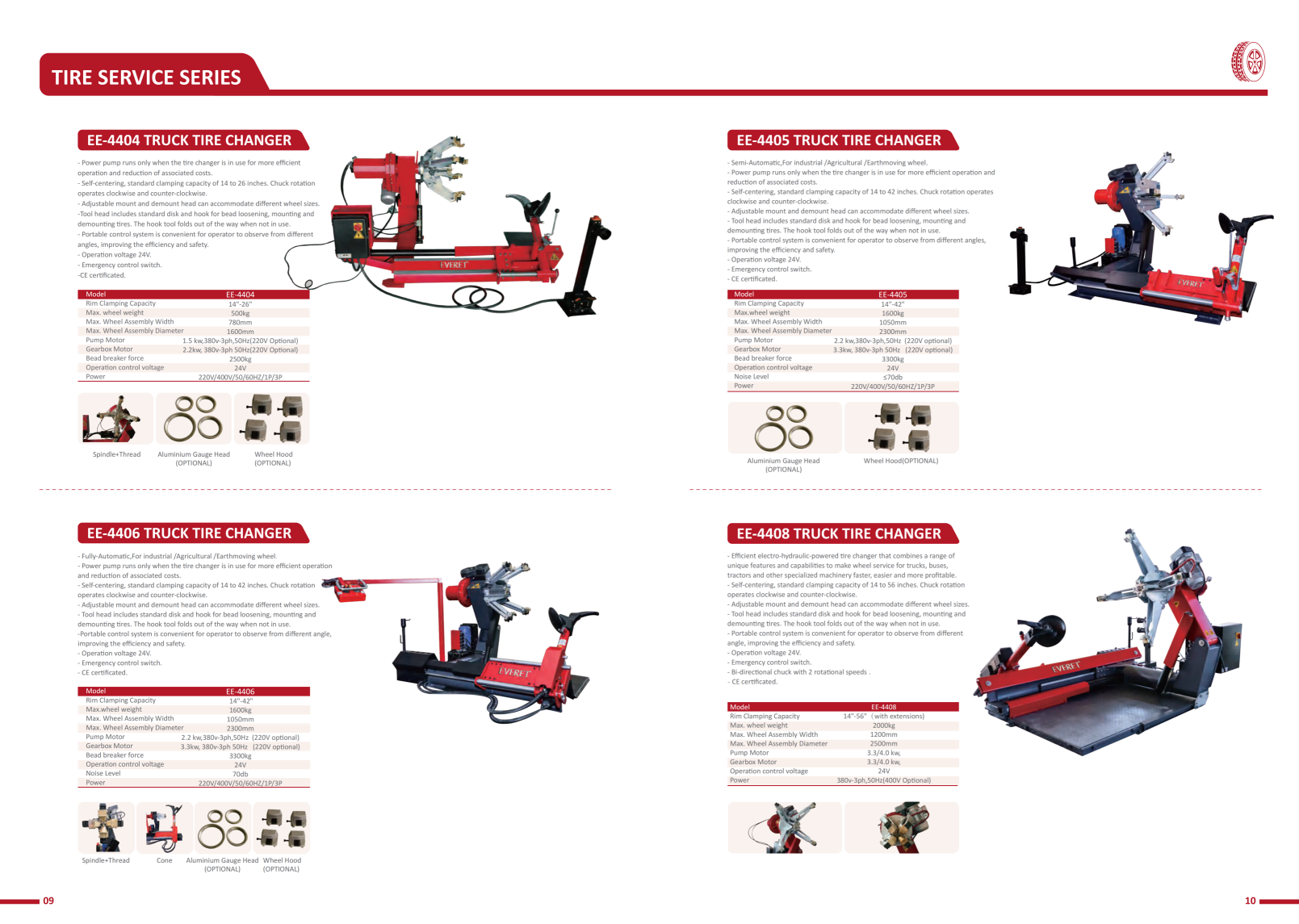

  • Brochure

Model
EE-4408
Rim Clamping Capacity
14"-56"(with extensions)
Max.wheel weight
2000kg
Max.Wheel Assembly Width
1200mm
Max.Wheel Assembly Diameter
2500mm
Pump Motor
3.3/4.0 kw,
Gearbox Motor
3.3/4.0 kw,
Operation control voltage
24V
Power
380v-3ph,50Hz(400V Optional)

- Efficient electro-hydraulic-powered tire changer that combines a range of unique features and capabilities to make wheel service for trucks, buses, tractors and other specialized machinery faster, easier and more profitable.
- Self-centering, standard clamping capacity of 14 to 56 inches. Chuck rotation operates clockwise and counter-clockwise.
- Adjustable mount and demount head can accommodate different wheel sizes.
- Tool head includes standard disk and hook for bead loosening, mounting and demounting tires. The hook tool folds out of the way when not in use.
- Portable control system is convenient for operator to observe from different angle, improving the efficiency and safety.
- Operation voltage 24V.
- Emergency control switch.
- Bi-directional chuck with 2 rotational speeds.
- CE certificated.
