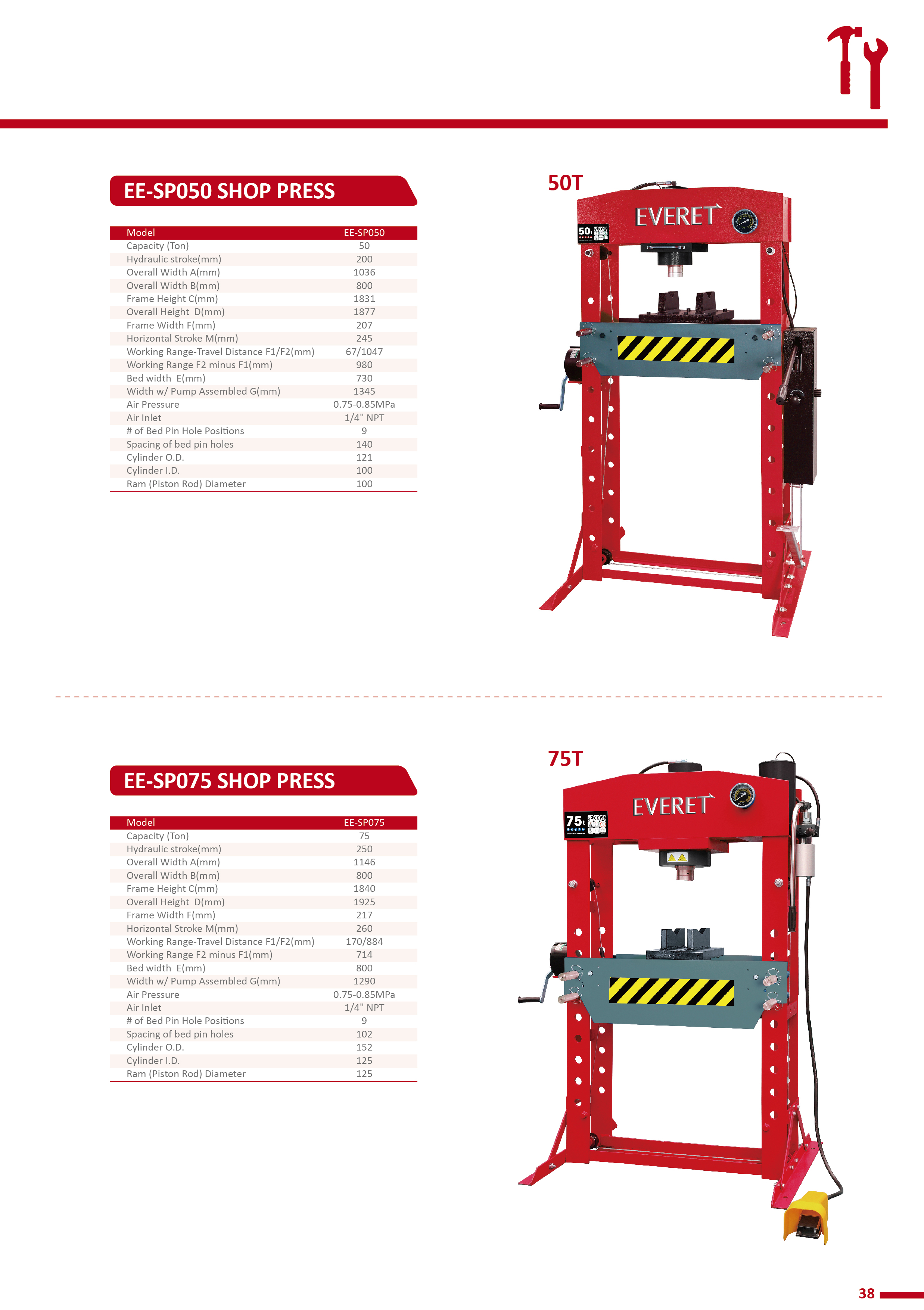

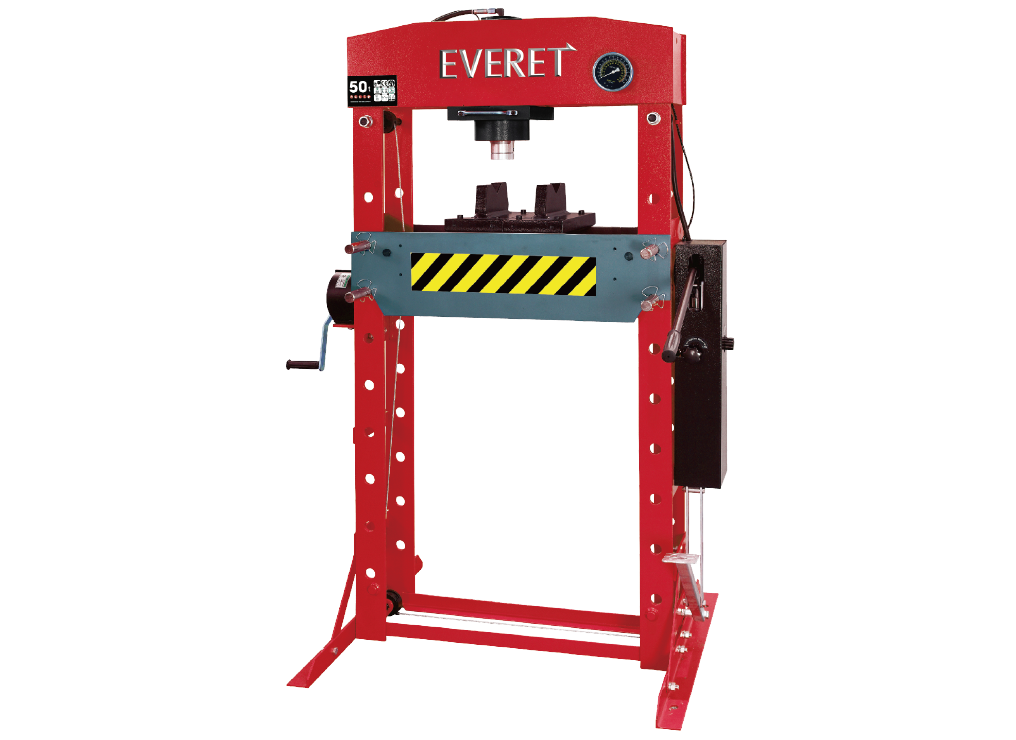

Model	EE-SP050
Capacity (Ton)	50
Hydraulic stroke (mm)	200
Overall Width A (mm)	1036
Overall Width B (mm)	800
Frame Height C (mm)	1831
Overall Height D (mm)	1877
Frame Width F (mm)	207
Horizontal Stroke M (mm)	245
Working Range-Travel Distance F1/F2 (mm)	67/1047
Working Range F2 minus F1 (mm)	980
Bed width E (mm)	730
Width w/Pump Assembled G (mm)	1345
Air Pressure	0.75-0.85 MPa
Air Inlet	1/4" NPT
# of Bed Pin Hole Positions	9
Spacing of bed pin holes	140
Cylinder O.D.	121
Cylinder I.D.	100
Ram (Piston Rod) Diameter	100
